Heated, Self-Contained Mobile Safety Shower and Eyewash

The portable C1D2 rated EcoRig™ safety shower and eyewash offers affordable protection for your employees in virtually any location. Its pneumatic pump, electric immersion heater, and large capacity tank provide over 15 minutes of continuous tepid water flow for emergency situations.

  • ANSI Z358.1 Compliant
  • Self-Contained
  • Small Footprint
  • Mobile Shower
  • Meets Tepid Water Standards
  • Shower and Eyewash

Continued Below…

Need a Quote?

Get My Quote >

Related Products

SafetyRigTM

EcoDrenchTM

GlacierTM

TropicTM

Frequently Ordered With

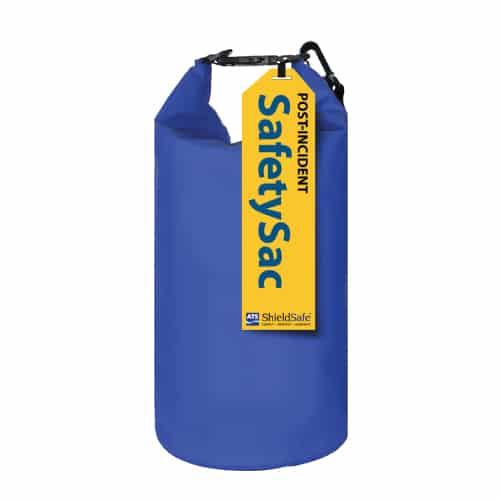

SafetySacTM

After-Incident Protection

Containment Berm

Incident Containment System

PermaToteTM

Chemical Safety System

About the EcoRig

The most robust mobile safety shower on the market

This revolutionary portable safety shower is designed and built for use in the field. This Class 1 Division shower is made from sturdy materials and manufactured to provide many years of use in mobile applications where there is no potable water source. When used correctly the EcoRig is fully compliant with ANSI Z358.1 (2014).

This model includes a 400-gallon tank with an immersion heater to maintain the water temperature above the ANSI minimum of 60°F (15.6°C). Water pressure is provided by a pneumatic water pump, and the unit comes with an integrated eyewash. EcoRig’s drop-and-lock legs provide additional stability during use. A key feature of this product is its small footprint, which allows for deployment in small or tight work areas.

Features You Need. Options You'll Want.

See the features and available options for the EcoRig.

Features

Options

Features

  • Class 1 Division 2 rated
  • 400-gallon water tank mounted on trailer
  • Heated water (ANSI tepid)
  • Stainless steel shower nozzle - 20 GPM (76 LPM)
  • Eyewash with activation cover - 0.4 GPM (3 LPM)
  • Pneumatic water pump
  • UV-resistant, powder-coated steel trailer frame
  • 2” ball hitch
  • Drop down rear leg stabilizers
  • Lights and brakes for safe highway travel
  • All necessary safety signage
  • Low temperature dump valve
  • Spare tire

Options

  • Configurable as C1D2 unit
  • Insulated blanket for low temps
  • Water temp alarm switch
  • Low water level alarm switch
  • Alarm horn and beacon w/switches
  • Non-hazardous electric water pump
  • Stainless steel temperature gauge
  • SafetySac™ after-incident system
  • WaterGuard™ (2-year water treatment)
  • PermaTote™ chemical safety system
  • Containment berm system
  • Filtration system

Technical Data

Specific details about the EcoRig

Operating Temp Capacity

0°F – 100°F

-17.8°C – 37.8°C

Available Voltages

120V, 20A, single phase, 60Hz

240V, 20A, single phase, 60Hz

Certifications

ANSI

UL

Optional Configuration

C1D1

C1D2

Hurricane/Marine
